DGL 113: Debugging

## Debugging
---
### Objectives
* Describe the types of errors that may occur
  with JavaScript code
* Use IDE tools to debug JavaScript code
* Use Browser Developer tools to debug JS code
---
### Error Types
* System error ― caused by the system or
  external devices with which the program is
  interacting.
* Programmer error ― the program contains
  incorrect syntax or faulty logic.
* User error ― user entered data incorrectly,
  which the program is unable to handle.
---
### Error Types
* Compile-Time Errors
  * Syntax error - e.g., misspell a reserved word
  * Semantic Error — improper use of program
    statements
* Run-Time errors - e.g, division by 0
* Logical Errors—program does not provide the
  correct result.
---
### Syntax Errors
* Syntax errors are grammatical errors and are
  usually flagged by the IDE before the code is
  executed.
* Syntax errors should be avoided and
  minimized.
* A good IDE / Editor can detect and flag
  syntax errors.
---
### Common Syntax Errors
1. Missing, mismatching , misplacing braces,
   quotes or apostrophes
1. Missing parentheses where needed
1. Mismatching cases—JS is case sensitive
1. Using reserved words for variable names,
  http://www.W3schools.Com/js/js_reserved.Asp
---
### Other Common Errors
1. Not declaring variables before use
1. Confusing concatenation and addition
1. Referencing objects before they are loaded
   or don't not exist
1. Missing parameter on function calls
---
### Use Strict Mode
* Strict Mode is a feature added to ECMAScript 5
  that flags more exceptions and warnings.
* It prohibits the use of some deprecated
  features, e.g., it requires that all variables must
  be declared before use.
* invoke strict mode by adding the following statement
  at the top of your script:
```javascript
'use strict';
```
---
### IDE JS Support
1. The IDE we use, VS Code with proper extensions,
   has good JavaScript Support.
1. Provides code hint when a . is provided after an
   object name.
1. Provides balanced () and {}.
1. Color code components of JavaScript.
1. Flag errors with red color, though may not pinpoint
   the exact error type or location.
1. Code collapse.
---
## Testing and Error Debugging
---
### Debugging with Browsers
* All modern browsers have developer tools to
  help you debug JS code.
* For both Windows and Mac OS, R-click in the
  browser window | Inspect or Inspect Element.
* You may also install Firebug extension, which
  may provide some more information.
---

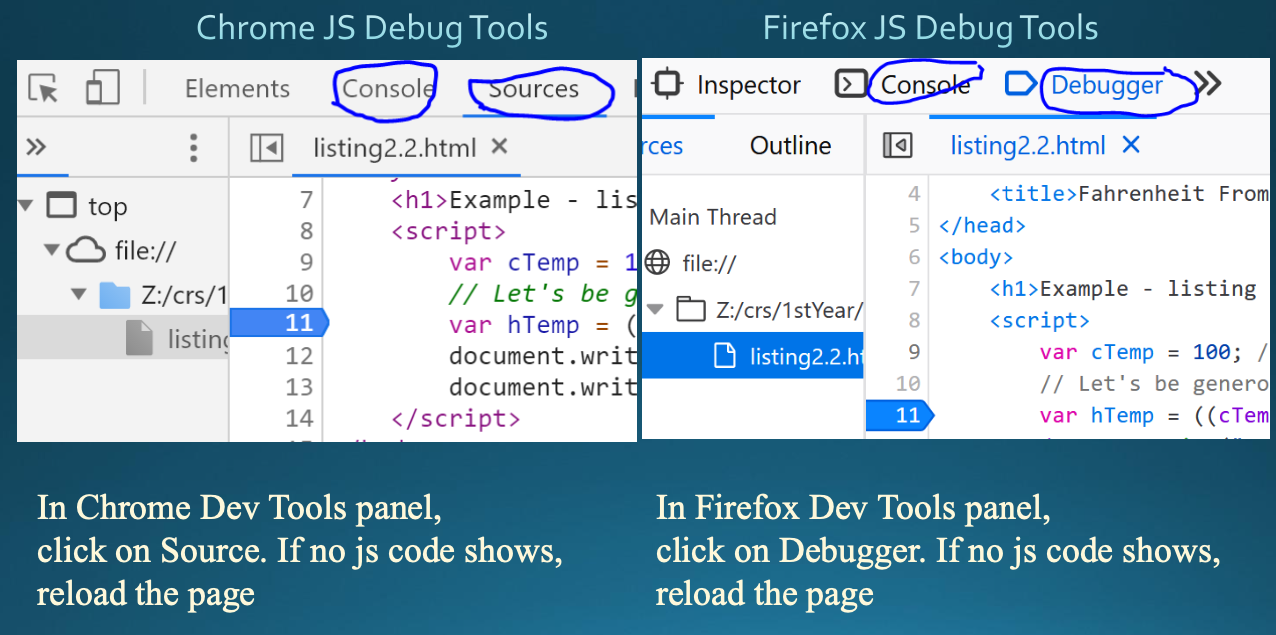

### Debugging with Browsers
![debugging with browsers](browser-debugging.png)
---
### Debugging with Browsers
* `alert()` method
* `console` object
* Debugging tools such as breakpoints
* Error objects
* Throw exceptions (optional)
```javascript
throw new Error('error message')
```
---
### JS Code Execution & Exceptions
* Understanding how scripts are processed is
  helpful to find the source of an error.
* The JavaScript interpreter processes code one line
  at a time.
* If a JavaScript statement generates an error, it
  throws an `exception`.

---
### JS Code Execution & Exceptions
* When an exception is thrown, an `Error`
  object is created.
* `Error` objects help you find where your errors
  are.
* Browsers have tools to help you read them.

---
### Error Objects
| Property     | Description             |
|--------------|-------------------------|
| `name`       | type of error           |
| `message`    | description of error    |
| `fileName`   | name of JavaScript file |
| `lineNumber` | line number of error    |
---
### Debugging with Console
* You can just type code into the console, and it will
  show the code execution result.
* The `console.log(...)` method will evaluate
  the expression in parentheses and
  write the result to the browser's
  console as the statement is processed.
---
### Debugging with Console
```javascript
console.log('Found an error in the code');
console.log('3 + 5 =' + (3+5));
console.log(alert('3 + 5 =' + (3+5)));
```
---
### Debugging with Console
* These methods show messages like `log()` but
  have a slightly different style:
```javascript
console.info(...);
console.warn(...);
console.error(...);
```
* You can write arrays and object data into a table
  with:
```javascript
console.table(objectname);
```
---
### Debugging with Chrome Sources
* Breakpoints let you pause the script on any line,
  you can then check the values stored in variables.
* For Chrome, Inspect / Dev Tools | Sources | show
  JS Code.
* Click on the line number will enable/disable
  breakpoint on the line.
* Hover on a variable name will show the value of
  the variable.
---

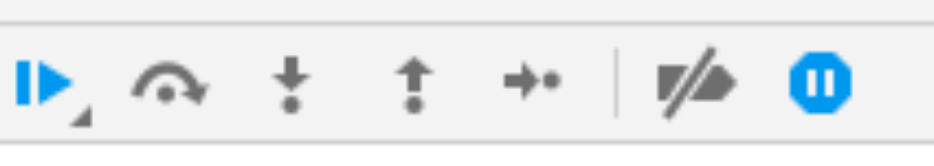

### Debugging with Chrome Sources
* If you have several breakpoints or debug multiple
  lines of code, you can step through them one by
  one.
![stepping](stepping.png)
---
### Debugging Minified Code
1. use step into to get into the minified code.
1. click on the “Pretty print” { } at the bottom of
   the code pane on the debugger window.
